Professional electric heater pcb board

FOB Reference Price:Get Latest Price
US $1-50 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SOUNDS
Model Number:
CHM-4518 .PCB
Base Material:
CEM-1
Copper Thickness:
35um(customized)
Board Thickness:
1.6mm
Min. Hole Size:
0.1 mm
Min. Line Width:
3mil
Min. Line Spacing:
3mil
Surface Finishing:
HASL Lead Free
Solder mask:
Green,Yellow,Black,White...
Board layer:
single
Flame retardant standard:
94V-0
Voltage:
100VAC
Frequency:
50/60HZ
PCB QC:
E-Test
PCBA QC:
AOI, Function and Burn-in test
Apply to:
Electric heater
Service:
PCB design and PCBA
Key Words:
Electric heater PCBA
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1.Inner packing :anti-static bag such as red or white bubble bag. Outer packing: standard carton.
2.Protect product with polyfoam and multi-layer paperboard.
3.We can pack as your requirements.
Port
Zhuhai ,Guangdong
Lead Time :
18 working days

4518

Product Description

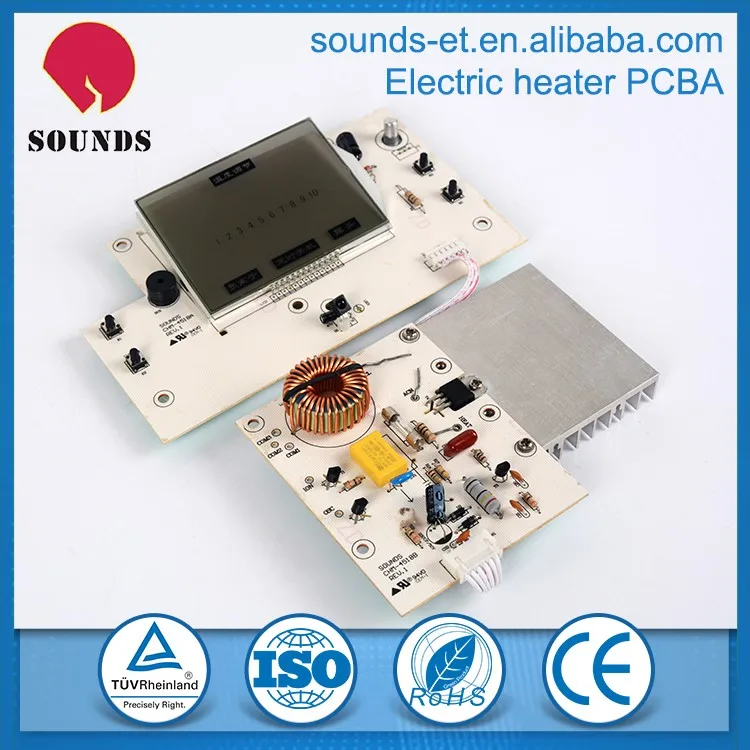

Professional  electric heater pcb board

Model Number

CHM-4518 .PCB

Surface Finishing

HASL lead free

Min. Line Spacing

3mil

Min. Line Width

3mil

Min. Hole Size

0.1 mm

Board Thickness

1.6mm

Copper Thickness

35um (customized)

Base Material

CEM-1

Solder mask color

Green,Yellow,Black,White,Other

Board layer

single

Voltage

100VAC

Flame retardant standard

94V-0

Frequency

50/60HZ

PCB QC

E-Test

PCBA QC

AOI test,Function test,Burn-in test

Power

900W ,can adjust 300W~900W(no flash)

Apply to

Electric  heater

Service

PCB design and PCBA



Remark: PCB layout can be customized according to customer requirements.

Our product can apply for various of certifications according to customer's requirements,such as: UL ,CE,ETL,TUV...



Main features

1)Negative ion buttons

According to the first press the button, the anion icon display lights up, anion generator started to work, then, once the display icon, negative ions stop working.

2)Time switch

3)Set head button

When open the fan heater ,Display head icon lights up, can control head (right and left),once put the button, it stops, display off.



PCB Details

Item

Description

Capability

Material

Laminate materials

FR-1,FR-4 CEM-1 CEM-3,Alu...

Surface Finish

HASL,ENIG,immersion silver,immersion tin,OSP...

SMT

SMT component size

 0210, 0402,0603,0805,1206

Board cutting

Number of layers

1-16

Min. Thickness for inner layers

0.003”(0.07mm)

(Cu thickness are excluded)

Solder mask

Color

White,black,red,Green,yellow,blue...

Min solder mask clearance

0.003” (0.07mm)

Thickness

0.0005-0.0007”(0.012-0.017mm)

Silkscreen

Color

White,black,yellow,red,blue...

Min size

0.006” (0.15mm)

Board thickness

Standard

0.04-0.16”±10%(0.1-4mm±10%)

Min.

Single/Double layer: 0.008±0.004”

Copper weight

Outer Cu weight

0.5-4 oz

Inner Cu weight

0.5-3 oz

Drilling

Min size

0.0078” (0.2mm)

Drill deviation

±0.002” (0.05mm)

 hole tolerance

±0.002” (0.005mm)

Plating

Min hole size

0.0008” (0.02mm)

E-test

Flying Probe Tester

Yes

Controlled

Tolerance

±10%
