Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: SOUNDS
  • Model Number: 2654.PCB
  • Base Material: CEM-1
  • Copper Thickness: 1oz
  • Board Thickness: 1.6mm
  • Min. Hole Size: 0.25 mm
  • Min. Line Width: 0.3mm
  • Min. Line Spacing: 5mil
  • Surface Finishing: HASL Lead Free
  • Solder mask: Green,Yellow,Black,White...
  • Board layer: single
  • Flame retardant standard: 94V-0
  • Voltage: 120V
  • Frequency: 60HZ
  • PCB QC: E-Test
  • PCBA QC: AOI, Function and Burn-in test
  • Apply to: fan
  • Service: PCB design and PCBA
  • Key Words: Air fan PCBA

Packaging & Delivery

Packaging Details 1.Inner packing :anti-static bag such as red or white bubble bag. Outer packing: standard carton.
2.Protect product with polyfoam and multi-layer paperboard.
3.We can pack as your requirements.
Delivery Time 18 working days

Product Description

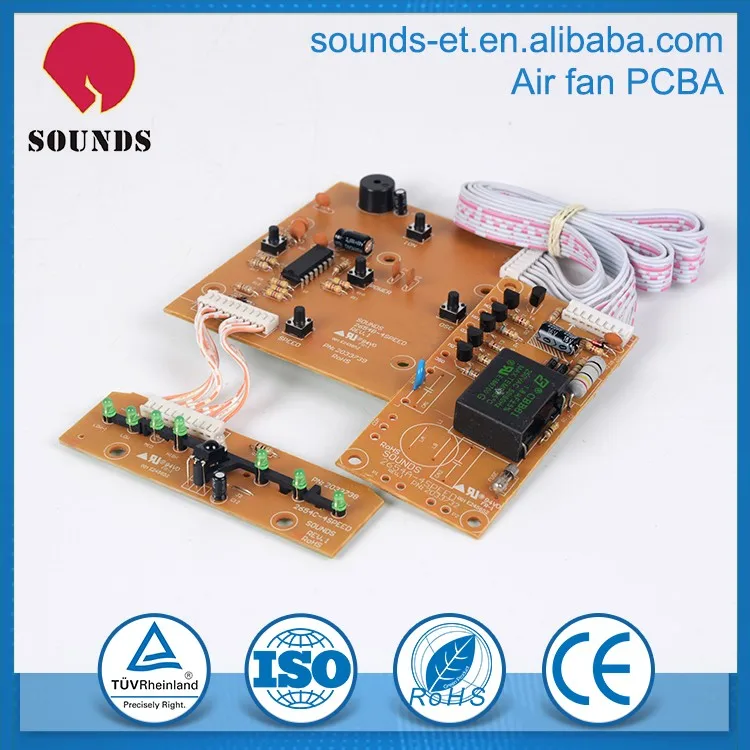

Best selling air cooling fan pcb manufacturer

Model Number

2654.PCB

Surface Finishing

HASL lead free

Min. Line Spacing

5mil

Min. Line Width

0.3mm

Min. Hole Size

0.25 mm

Board Thickness

1.6MM

Copper Thickness

1oz

Base Material

CEM-1

Solder mask color

Green,Yellow,Black,White,Other

Board layer

single

Voltage

120V

Flame retardant standard

94V-0

Frequency

60Hz

PCB QC

E-Test

PCBA QC

AOI test,Function test,Burn-in test

Function

Hot water and cold water control

Working voltage and frequency

120 VAC 60 Hz

Maximum working power

100 W

Remote control range

> 25 feet

Operating temperature range

0 (minimum) - 140 (maximum)

Apply to

air fan

Service

PCB design and PCBA



Remark: PCB layout can be customized according to customer requirements.

Our product can apply for various of certifications according to customer's requirements,such as: UL ,CE,ETL,TUV...



Main features

1.A thyristor control programme.
2.Timing function: up to seven hours, increment of 1 hour (cumulative: 1,2,4).

3.The IR remote control.
4.LED status indicators   (speed: green, timing: green, negative ion: blue).
5.Negative ion.



Power key
1.Power: ON/OFF

2.Speed: LOW, MEDIUM, HIGH
3.Time: 1 hour each time you press the add, until 7 hours, (then) once closed timing function
4.OSC: ON/OFF
5.ION
Remote control with five and fan function keys, but there is no display.

The fan control panel above all functions are consistent with the remote control.



PCB Details

Item

Description

Capability

Material

Laminate materials

FR-1,FR-4 CEM-1 CEM-3,Alu...

Surface Finish

HASL,ENIG,immersion silver,immersion tin,OSP...

SMT

SMT component size

 0210, 0402,0603,0805,1206

Board cutting

Number of layers

1-16

Min. Thickness for inner layers

0.003”(0.07mm)

(Cu thickness are excluded)

Solder mask

Color

White,black,red,Green,yellow,blue...

Min solder mask clearance

0.003” (0.07mm)

Thickness

0.0005-0.0007”(0.012-0.017mm)

Silkscreen

Color

White,black,yellow,red,blue...

Min size

0.006” (0.15mm)

Board thickness

Standard

0.04-0.16”±10%(0.1-4mm±10%)

Min.

Single/Double layer: 0.008±0.004”

Copper weight

Outer Cu weight

0.5-4 oz

Inner Cu weight

0.5-3 oz

Drilling

Min size

0.0078” (0.2mm)

Drill deviation

±0.002” (0.05mm)

 hole tolerance

±0.002” (0.005mm)

Plating

Min hole size

0.0008” (0.02mm)

E-test

Flying Probe Tester

Yes

Controlled

Tolerance

±10%





Company Information





Sounds was founded 21 years ago, and it started producing its professional PCBA in 1995.  Sounds is expert in electrical PCBA design and manufacture. It also specialize in adapter and remote controller mass production. “Serve the public, focus on quality” is its motto. Sounds locates in Zhuhai city, Guangdong province. As it known to all, Zhuhai is convenient for export the electrics product. Its valued customer so far----Lasko, Jarden, Honeywell, Kaz and so on.
