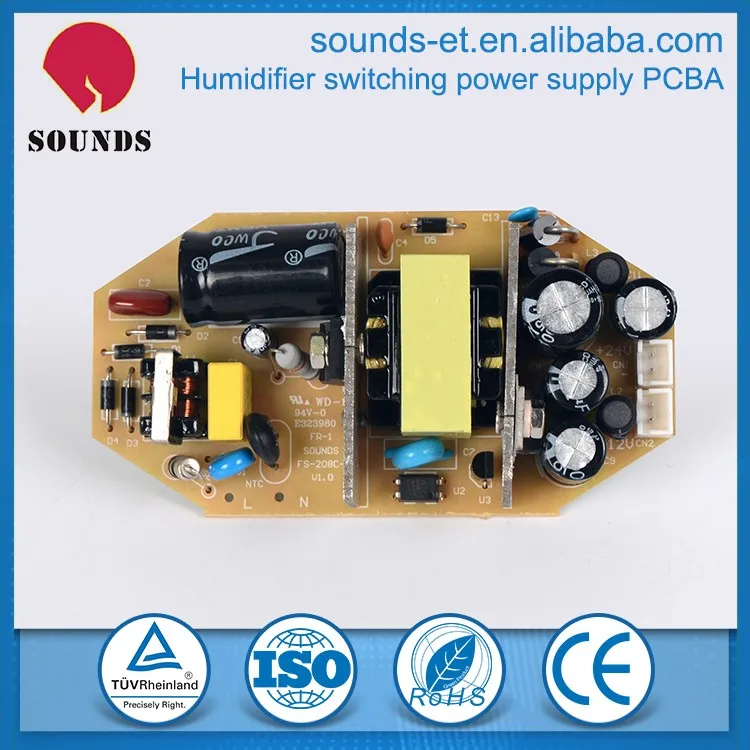

Factory direct supply high quality 12V 1a power supply PCBA

FOB Reference Price:Get Latest Price
US $1-10 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SOUNDS
Model Number:
power.PCB
Base Material:
FR-4
Copper Thickness:
1/2OZ 1OZ 2OZ 3OZ
Board Thickness:
1.6mm
Min. Hole Size:
0.20mm
Min. Line Width:
3mi
Min. Line Spacing:
0.003"
Surface Finishing:
OSP
Solder mask:
Green,Yellow,Black,White,Other
Board layer:
single
Flame retardant standard:
94V-0
Voltage:
100-240VAC
Frequency:
50/60HZ
PCB QC:
E-Test
PCBA QC:
AOI, Function and Burn-in test
Apply to:
USB charger , mobile phone, electronic product
Service:
PCB design and PCBA
Key Words:
power supply PCBA
Packaging & Delivery
Packaging Details
1.Inner packing :anti-static bag such as red or white bubble bag. Outer packing: standard carton.
2.Protect product with polyfoam and multi-layer paperboard.
3.We can pack as your requirements.
Port
Zhuhai ,Guangdong
Lead Time :
18 working days



Product Description

Factory direct supply high quality 12V 1a  power supply PCBA

Model Number

power.PCB

Surface Finishing

HASL lead free (customized)

Min. Line Spacing

0.1mm

Min. Line Width

0.1mm

Min. Hole Size

0.15 mm

Board Thickness

1.6mm (customized)

Copper Thickness

35um

Base Material

FR-1,FR-4 CEM-1 CEM-3,Al...

solder mask color

Green,Yellow,Black,White,Other

Board layer

single

Voltage

DC 12V DC5V DC 24V

Flame retardant standard

94V-0

current

1A  2A  3A (custom )

PCB QC

E-Test

PCBA QC

AOI test,Function test,Burn-in test

Input voltage and frequency

220-240V/50Hz(GS standard)

Input voltage and frequency

100-127V/60Hz (UL standard)




Apply to

electric product

Service

PCB design and PCBA

Remark: PCB size and  layout can be customized according to customer requirements.

Our product can apply for various of certifications according to customer's requirements,such as: UL ,CE,ETL,TUV...



Features-Our Products Advantage



1. Over 22 years experience manufacturer in pcb and pcba service field.



2.  Big scale of producing makes sure that your purchase cost is lower.



3. Advanced production line guarantees stable quality and long life span.



4. Design and produce almost any PCB as your requirement.



5100% test for all customized pcb products



6. One-stop Service ,we can help to purchase the compnents









PCB Details

Item

Description

Capability

Material

Laminate materials

FR-1,FR-4 CEM-1 CEM-3,Alu...

Surface Finish

HASL,ENIG,immersion silver,immersion tin,OSP...

SMT

SMT component size

 0210, 0402,0603,0805,1206

Board cutting

Number of layers

1-16

Min. Thickness for inner layers

0.003”(0.07mm)

(Cu thickness are excluded)

Solder mask

Color

White,black,red,Green,yellow,blue...

Min solder mask clearance

0.003” (0.07mm)

Thickness

0.0005-0.0007”(0.012-0.017mm)

Silkscreen

Color

White,black,yellow,red,blue...

Min size

0.006” (0.15mm)

Board thickness

Standard

0.04-0.16”±10%(0.1-4mm±10%)

Min.

Single/Double layer: 0.008±0.004”

Copper weight

Outer Cu weight

0.5-4 oz

Inner Cu weight

0.5-3 oz

Drilling

Min size

0.0078” (0.2mm)

Drill deviation

±0.002” (0.05mm)

 hole tolerance

±0.002” (0.005mm)

Plating

Min hole size

0.0008” (0.02mm)

E-test

Flying Probe Tester

Yes

Controlled

Tolerance

±10%





Company Information





Sounds was founded 21 years ago, and it started producing its professional PCBA in 1995.  Sounds is expert in electrical PCBA design and manufacture. It also specialize in adapter and remote controller mass production. “Serve the public, focus on quality” is its motto. Sounds locates in Zhuhai city, Guangdong province. As it known to all, Zhuhai is convenient for export the electrics product. Its valued customer so far----Lasko, Jarden, Honeywell, Kaz and so on.



Production Process





Sounds has massive force in product design and development. The Engineering Dept has about 20 engineers. For Production Dept, it has 450 workers. Besides, there are 24 production lines for PCBA assembly. What’s more, its perfect equipment of auto-insert machines and surface mounting technology machines process quickly day and night. In the meantime, Sounds has continually improved its factory quality systems and passed ISO9001 and got the certificates of UL, ETL, CE and TUV. For IQC, all materials must up to ROHS standard, some of them must pass Compression Test, Salt Spray Test, High & Low Temperature Circle Test and Burn -in Test.



Quality Assurance



Hot Products





After 21 years of development, its sales volume ups to $25 million per year. Sounds does highly welcome OEM and ODM orders. The management motto of “Develop with Sincerity, Innovation and Progressive” encourage Sounds to keep moving. All in all, a good partner is also trustworthy, Sounds earn your trust and Sounds keep your trust.



Our Certificates



Packaging & Shipping



FAQ



Q1: What document should we provide if we need quotation and sample?

A: You should send us the Gerber file and BOM list. Your original sample is highly welcome. Please tell us the details about the project. If you need us make some test for the sample, you should tell us the test standards.



Q2: Can I have some samples from you ?

A: Of course, we always do new samples for our customers in order to confirm the product’s quality. The samples quality decide the product can go into mass product or not.



Q3: Can you offer us the best price?

A: Sure, we are the professional manufacturer and have 21 years’ experience, we have large enough supply chain, can offer you more favorable price than trading company.



Q4: How about the delivery time when I place an order?

A: For new samples ,we will  finish them within10-15days,For bulk orders, we usually need 15-20 days. The final delivery time depend on the design.



Q5: Which way would you like to send us the product?

A: By DHL, UPS, FedEX to ship samples. For bulk orders, we can ship by air or by sea.



Q6: Can I take a visit to your factory?

A: No problem, we are looking forward to your arrival and we will show you our factory’s ability. Please feel free to contact us, thanks.
