Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: SOUNDS
  • Model Number: HT-PCB-002.PCB
  • Base Material: FR-1(customized)
  • Copper Thickness: 0.5-4oz
  • Board Thickness: 1.6mm (customized)
  • Min. Hole Size: 0.2mm
  • Min. Line Width: 0.15mm
  • Min. Line Spacing: 0.15mm
  • Surface Finishing: HASL Lead Free
  • Solder mask: Green,Yellow,Black,White...
  • Board layer: single
  • Flame retardant standard: 94V-0
  • Voltage: 100-240VAC(customized)
  • Frequency: 50/60Hz
  • PCB QC: E-Test
  • PCBA QC: AOI, Function and Burn-in test
  • Apply to: Electric heater
  • Service: PCB design and PCBA
  • Key Words: Electric heater PCBA

Packaging & Delivery

Packaging Details 1.Inner packing :anti-static bag such as red or white bubble bag. Outer packing: standard carton.
2.Protect product with polyfoam and multi-layer paperboard.
3.We can pack as your requirements.
Delivery Time 18 working days

Product Description

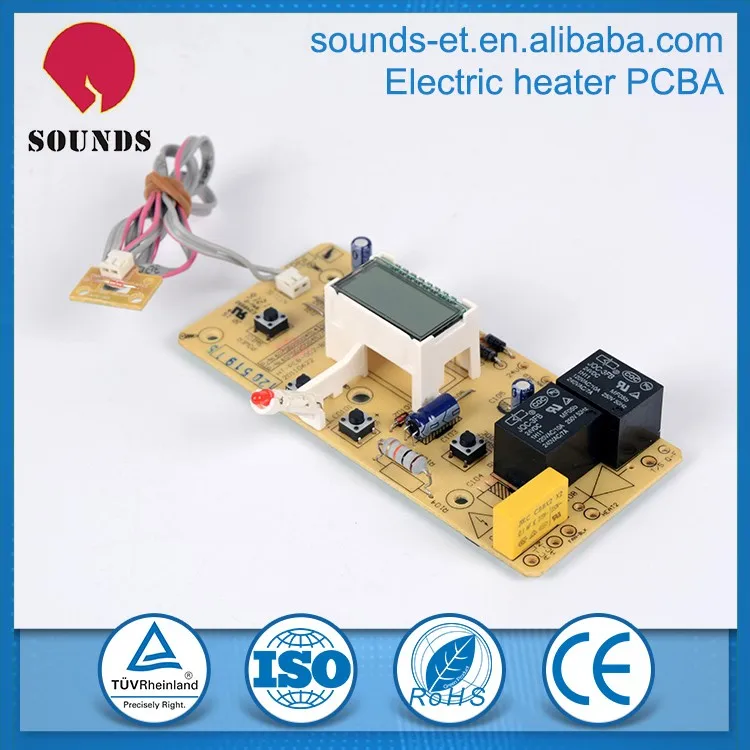

 electric heater PCB assembly  with LCD display

Model Number

HT-PCB-002.PCB

Surface Finishing

HASL lead free

Min. Line Spacing

0.15mm

Min. Line Width

0.15mm

Min. Hole Size

0.20mm

Board Thickness

1.6mm (customized)

Copper Thickness

0.5-4oz

Base Material

FR-1(customized)

solder mask color

Green,Yellow,Black,White,Other

Board layer

single

Voltage

100-240VAC(customized)

Flame retardant standard

94V-0

Frequency

50/60Hz

PCB QC

E-Test

PCBA QC

AOI test,Function test,Burn-in test

Display mode

LCD

Apply to

Electric heater

Service

PCB design and PCBA

Remark: PCB layout can be customized according to customer requirements.

Our product can apply for various of certifications according to customer's requirements,such as: UL ,CE,ETL,TUV...



PCB or PCB Assembly files requirements

1)Gerber files of the PCB.

2)BOM(Bill of material) for assembly

To short thelead time, please kindly advise us if there is any acceptable components substitution.

3)Programming files & programming tool if necessary.

4)Testing method & Test fixtures if necessary.

5)Schematic if available.



PCB Details

Item

Description

Capability

Material

Laminate materials

FR-1,FR-4 CEM-1 CEM-3,Alu...

Surface Finish

HASL,ENIG,immersion silver,immersion tin,OSP...

SMT

SMT component size

 0210, 0402,0603,0805,1206

Board cutting

Number of layers

1-16

Min. Thickness for inner layers

0.003”(0.07mm)

(Cu thickness are excluded)

Solder mask

Color

White,black,red,Green,yellow,blue...

Min solder mask clearance

0.003” (0.07mm)

Thickness

0.0005-0.0007”(0.012-0.017mm)

Silkscreen

Color

White,black,yellow,red,blue...

Min size

0.006” (0.15mm)

Board thickness

Standard

0.04-0.16”±10%(0.1-4mm±10%)

Min.

Single/Double layer: 0.008±0.004”

Copper weight

Outer Cu weight

0.5-4 oz

Inner Cu weight

0.5-3 oz

Drilling

Min size

0.0078” (0.2mm)

Drill deviation

±0.002” (0.05mm)

 hole tolerance

±0.002” (0.005mm)

Plating

Min hole size

0.0008” (0.02mm)

E-test

Flying Probe Tester

Yes

Controlled

Tolerance

±10%
