PCBA Clone and PCB Copy service was provided by zhuhai SOUNDS

FOB Reference Price:Get Latest Price
US $1-50 / Pieces | 1 Piece/Pieces PCBA Clone and PCB Copy service was provided by zhuhai SOUNDS (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SOUNDS
Model Number:
SF-076-K.PCB
Base Material:
CEM-1(customized)
Copper Thickness:
1oz
Board Thickness:
1.6mm(customized)
Min. Hole Size:
0.2 mm
Min. Line Width:
3mil
Min. Line Spacing:
3mil
Surface Finishing:
HASL Lead Free
Solder mask:
Green,Yellow,Black,White or other
Board layer:
single
Flame retardant standard:
94V-0
Voltage:
220VAC
Frequency:
50/60HZ
PCB QC:
E-Test
PCBA QC:
AOI test,Function test,Burn-in test
Apply to:
Ceiling fan
Service:
PCB design and PCBA
Key Words:
pcb clone
SupplyAbility
SupplyAbility:
Piece/Pieces per Month PCBA Clone and PCB Copy service was provided by zhuhai SOUNDS
Packaging & Delivery
Packaging Details
1.Inner packing :anti-static bag such as red or white bubble bag. Outer packing: standard carton.
2.Protect product with polyfoam and multi-layer paperboard.
3.We can pack as your requirements.
Port
Zhuhai ,Guangdong
Lead Time :
18 working days

Product Description

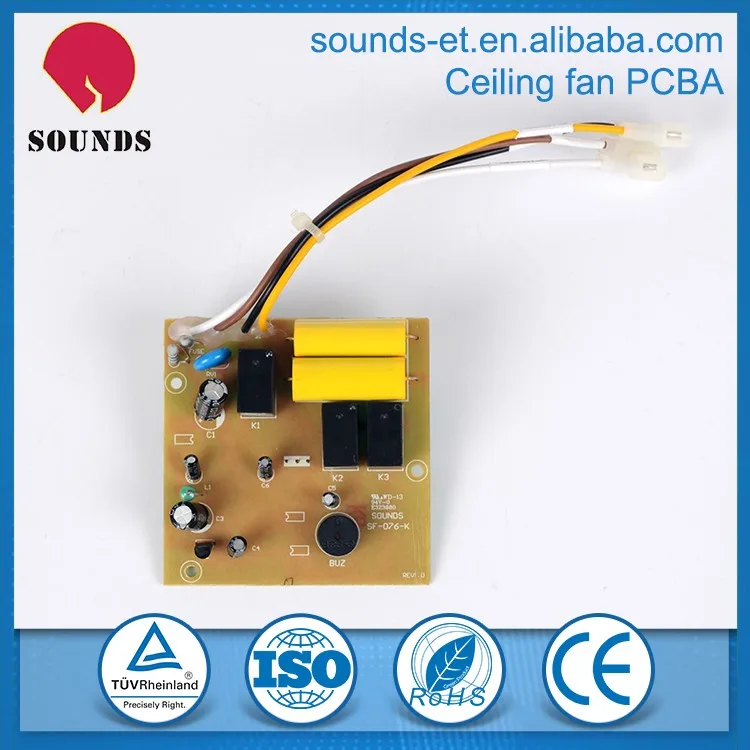

PCBA Clone and PCB Copy service was provided by zhuhai SOUNDS

Model Number

SF-076-K.PCB

Surface Finishing

HASL lead free

Min. Line Spacing

3mil

Min. Line Width

3mil

Min. Hole Size

0.20 mm

Board Thickness

1.6mm(customized)

Copper Thickness

1oz

Base Material

CEM-1(customized)

Solder mask color

Green,Yellow,Black,White,Other

Board layer

Single

Voltage

220VAC

Flame retardant standard

94V-0

Frequency

50/60HZ

PCB QC

E-Test

PCBA QC

AOI test,Function test,Burn-in test

Function key

1.OFF  2. LOW  3. MED  4. HIGHT  5. 1Hr  6.3Hr 7.6Hr

Apply to

Ceiling fan

Service

PCB design and PCBA

Remark: PCB layout can be customized according to customer requirements.

Our product can apply for various of certifications according to customer's requirements,such as: UL ,CE,ETL,TUV...



Main features

1)Every time when the electric buzzer ring ,fan not work.

2)According to the "LOW" button, the FAN at a lower speed (K3);Press "MED", FAN run at medium speed (K2 and K3);Press "HI", FAN running at high speed (K1).Each switch gear, FAN will delay 3 seconds to run.

3)Press "1 hr", PCB will be in 1 hour after shutdown;Press "3 hr", PCB will shut down after 3 hr;Press "6 hr", PCB will shut down after 6 hr.

4)Press OFF, shut OFF the FAN, press gear open, FAN need to delay 1 again.



PCB Details

Item

Description

Capability

Material

Laminate materials

FR-1,FR-4 CEM-1 CEM-3,Alu...

Surface Finish

HASL,ENIG,immersion silver,immersion tin,OSP...

SMT

SMT component size

 0210, 0402,0603,0805,1206

Board cutting

Number of layers

1-16

Min. Thickness for inner layers

0.003”(0.07mm)

(Cu thickness are excluded)

Solder mask

Color

White,black,red,Green,yellow,blue...

Min solder mask clearance

0.003” (0.07mm)

Thickness

0.0005-0.0007”(0.012-0.017mm)

Silkscreen

Color

White,black,yellow,red,blue...

Min size

0.006” (0.15mm)

Board thickness

Standard

0.04-0.16”±10%(0.1-4mm±10%)

Min.

Single/Double layer: 0.008±0.004”

Copper weight

Outer Cu weight

0.5-4 oz

Inner Cu weight

0.5-3 oz

Drilling

Min size

0.0078” (0.2mm)

Drill deviation

±0.002” (0.05mm)

 hole tolerance

±0.002” (0.005mm)

Plating

Min hole size

0.0008” (0.02mm)

E-test

Flying Probe Tester

Yes

Controlled

Tolerance

±10%





Company Information





Sounds was founded 21 years ago, and it started producing its professional PCBA in 1995.  Sounds is expert in electrical PCBA design and manufacture. It also specialize in adapter and remote controller mass production. “Serve the public, focus on quality” is its motto. Sounds locates in Zhuhai city, Guangdong province. As it known to all, Zhuhai is convenient for export the electrics product. Its valued customer so far----Lasko, Jarden, Honeywell, Kaz and so on.



Production Process





Sounds has massive force in product design and development. The Engineering Dept has about 20 engineers. For Production Dept, it has 450 workers. Besides, there are 24 production lines for PCBA assembly. What’s more, its perfect equipment of auto-insert machines and surface mounting technology machines process quickly day and night. In the meantime, Sounds has continually improved its factory quality systems and passed ISO9001 and got the certificates of UL, ETL, CE and TUV. For IQC, all materials must up to ROHS standard, some of them must pass Compression Test, Salt Spray Test, High & Low Temperature Circle Test and Burn -in Test.



Quality Assurance



Hot Products





After 21 years of development, its sales volume ups to $25 million per year. Sounds does highly welcome OEM and ODM orders. The management motto of “Develop with Sincerity, Innovation and Progressive” encourage Sounds to keep moving. All in all, a good partner is also trustworthy, Sounds earn your trust and Sounds keep your trust.



Our Certificates



Packaging & Shipping



FAQ



Q1: What document should we provide if we need quotation and sample?

A: You should send us the Gerber file and BOM list. Your original sample is highly welcome. Please tell us the details about the project. If you need us make some test for the sample, you should tell us the test standards.



Q2: Can I have some samples from you ?

A: Of course, we always do new samples for our customers in order to confirm the product’s quality. The samples quality decide the product can go into mass product or not.



Q3: Can you offer us the best price?

A: Sure, we are the professional manufacturer and have 21 years’ experience, we have large enough supply chain, can offer you more favorable price than trading company.



Q4: How about the delivery time when I place an order?

A: For new samples ,we will  finish them within10-15days,For bulk orders, we usually need 15-20 days. The final delivery time depend on the design.



Q5: Which way would you like to send us the product?

A: By DHL, UPS, FedEX to ship samples. For bulk orders, we can ship by air or by sea.



Q6: Can I take a visit to your factory?

A: No problem, we are looking forward to your arrival and we will show you our factory’s ability. Please feel free to contact us, thanks.
