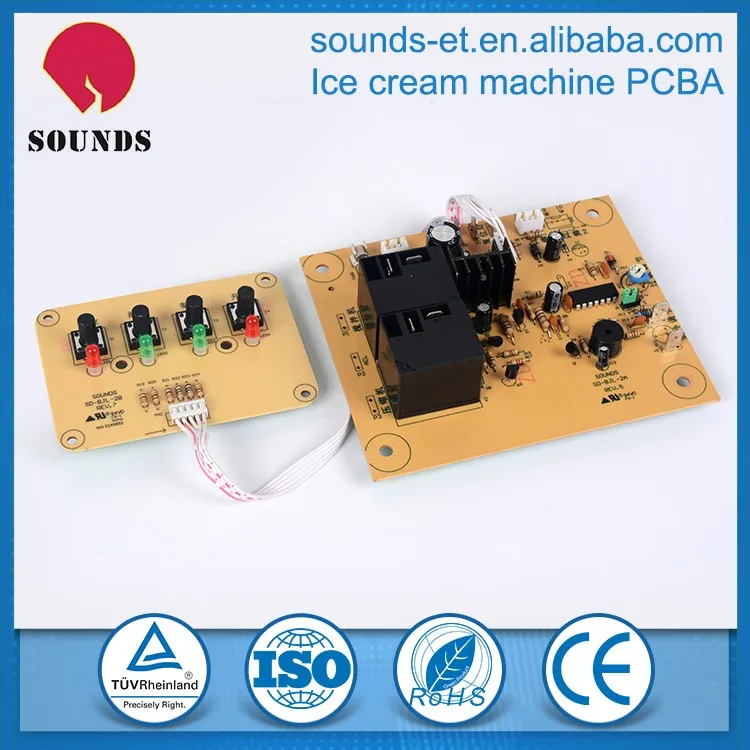

OEM ODM PCBA Assembly Manufacturer assemble electronic products Ice cream machine pcba

FOB Reference Price:Get Latest Price
US $1-10 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SOUNDS
Model Number:
SD-BJL-2A/B .PCB
Base Material:
CEM-1, FR-1, FR-4 , CEM-1, CEM-3, Al...
Copper Thickness:
1oz
Board Thickness:
1.6mm (customized)
Min. Hole Size:
0.25mm
Min. Line Width:
0.1mm
Min. Line Spacing:
0.1mm
Surface Finishing:
HASL Lead Free
Solder mask:
Green,Yellow,Black,White...
Board layer:
single
Flame retardant standard:
94V-0
Voltage:
220VAC(customized)
Frequency:
50Hz
PCB QC:
E-Test
PCBA QC:
AOI, Function and Burn-in test
Apply to:
Ice cream machine
Service:
PCB design and PCBA
Key Words:
pcb designing service
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1.Inner packing :anti-static bag such as red or white bubble bag. Outer packing: standard carton.
2.Protect product with polyfoam and multi-layer paperboard.
3.We can pack as your requirements.
Port
Zhuhai ,Guangdong
Lead Time :
18 working days

pcb designing service

Product Description

OEM ODM  PCBA Assembly Manufacturer assemble electronic products Ice cream machine pcba

Model Number

SD-BJL-2A/B .PCB

Surface Finishing

HASL lead free (customized)

Min. Line Spacing

0.1mm

Min. Line Width

0.1mm

Min. Hole Size

0.25mm

Board Thickness

1.6mm

Copper Thickness

1oz

Base Material

CEM-1,  FR-1, FR-4 , CEM-1,  CEM-3, Al...

solder mask color

Green,Yellow,Black,White,Other

Board layer

single

Voltage

220VAC

Flame retardant standard

94V-0

Frequency

50HZ

Power

mixer 1600W ,compressor 1500W

Function key

Reset,Wash,Refrigeration,ON/OFF

Current control range

4.2A-6.5A

max load current

8A

PCB QC

E-Test

PCBA QC

AOI test,Function test,Burn-in test

Apply to

Ice cream machine

Service

PCB design and PCBA

Remark: PCB layout can be customized according to customer requirements.

Our product can apply for various of certifications according to customer's requirements,such as: UL ,CE,ETL,TUV...



Main features

1)LED indicator
2)A " BI " sound every click on the button (1beep-165ms)
3)Protection function
After the key protection of overloading 8 A , must reset button firstly , then can perform other operations.



3.16 -1





Company Information



pcb designing servicepcb designing service



Sounds was founded 21 years ago, and it started producing its professional PCBA in 1995.  Sounds is expert in electrical PCBA design and manufacture. It also specialize in adapter and remote controller mass production. “Serve the public, focus on quality” is its motto. Sounds locates in Zhuhai city, Guangdong province. As it known to all, Zhuhai is convenient for export the electrics product. Its valued customer so far----Lasko, Jarden, Honeywell, Kaz and so on.



Production Process



pcb designing servicepcb designing service



Sounds has massive force in product design and development. The Engineering Dept has about 20 engineers. For Production Dept, it has 450 workers. Besides, there are 24 production lines for PCBA assembly. What’s more, its perfect equipment of auto-insert machines and surface mounting technology machines process quickly day and night. In the meantime, Sounds has continually improved its factory quality systems and passed ISO9001 and got the certificates of UL, ETL, CE and TUV. For IQC, all materials must up to ROHS standard, some of them must pass Compression Test, Salt Spray Test, High & Low Temperature Circle Test and Burn -in Test.



Quality Assurance



pcb designing service

Hot Products



pcb designing servicepcb designing service



After 21 years of development, its sales volume ups to $25 million per year. Sounds does highly welcome OEM and ODM orders. The management motto of “Develop with Sincerity, Innovation and Progressive” encourage Sounds to keep moving. All in all, a good partner is also trustworthy, Sounds earn your trust and Sounds keep your trust.



Our Certificates



pcb designing service

Packaging & Shipping



pcb designing servicepcb designing servicepcb designing service

FAQ



Q1: What document should we provide if we need quotation and sample?

A: You should send us the Gerber file and BOM list. Your original sample is highly welcome. Please tell us the details about the project. If you need us make some test for the sample, you should tell us the test standards.



Q2: Can I have some samples from you ?

A: Of course, we always do new samples for our customers in order to confirm the product’s quality. The samples quality decide the product can go into mass product or not.



Q3: Can you offer us the best price?

A: Sure, we are the professional manufacturer and have 21 years’ experience, we have large enough supply chain, can offer you more favorable price than trading company.



Q4: How about the delivery time when I place an order?

A: For new samples ,we will  finish them within10-15days,For bulk orders, we usually need 15-20 days. The final delivery time depend on the design.



Q5: Which way would you like to send us the product?

A: By DHL, UPS, FedEX to ship samples. For bulk orders, we can ship by air or by sea.



Q6: Can I take a visit to your factory?

A: No problem, we are looking forward to your arrival and we will show you our factory’s ability. Please feel free to contact us, thanks.
