PCB Clone pcb layout and assembly for fan heater PCBA with speed control

FOB Reference Price:Get Latest Price
US $1-50 / Pieces | 1 Piece/Pieces PCB Clone pcb layout and assembly (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
ODM
Model Number:
Customized
Base Material:
CEM-1
Copper Thickness:
1oz
Board Thickness:
1.6mm
Min. Hole Size:
0.25mm
Min. Line Width:
3mi
Min. Line Spacing:
0.003"
Surface Finishing:
ENIG
Solder mask color:
Green,Yellow,Black,White or other
Board layer:
single
Flame retardant standard:
94V-0
Voltage:
120V
Frequency:
60HZ
PCB QC:
E-Test
PCBA QC:
AOI test,Function test,Burn-in test
Apply to:
fan heater
Service:
PCB design and PCBA
Key Words:
fan heater PCBA
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month PCB Clone pcb layout and assembly
Packaging & Delivery
Packaging Details
1.Inner packing :anti-static bag such as red or white bubble bag. Outer packing: standard carton.
2.Protect product with polyfoam and multi-layer paperboard.
3.We can pack as your requirements.
Port
Zhuhai ,Guangdong
Lead Time :
18 working days

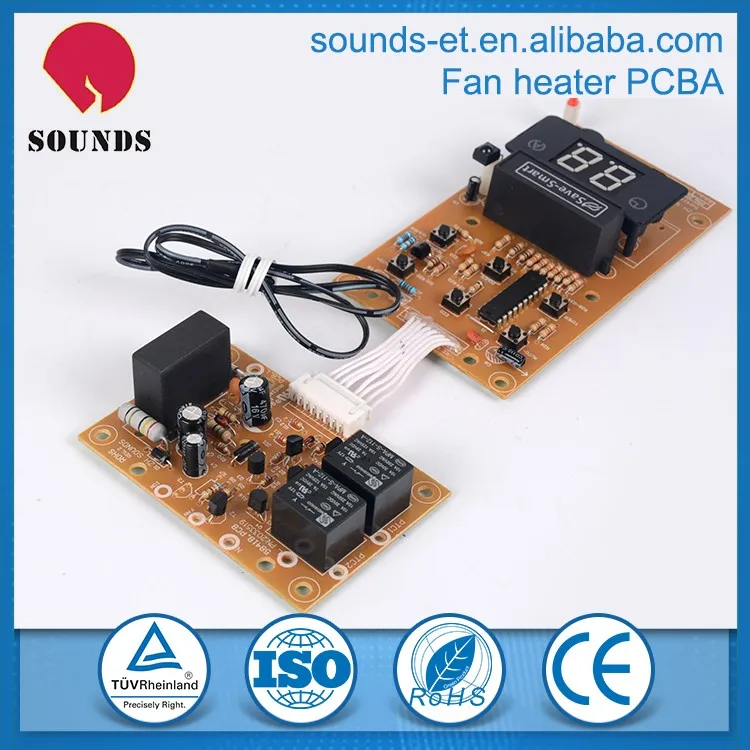

Fan heater PCBA

Product Description

PCB Clone pcb layout and assembly for  fan heater PCBA with speed control

Model Number

5841.PCB

Surface Finishing

HASL lead free

Min. Line Spacing

0.1mm

Min. Line Width

0.1mm

Min. Hole Size

0.15 mm

Board Thickness

1.6mm(customized)

Copper Thickness

1oz

Base Material

FR-1(customized)

Solder mask color

Green,Yellow,Black,White,Other

Board layer

Single

Voltage

120VAC

Flame retardant standard

94V-0

Frequency

60Hz

PCB QC

E-Test

PCBA QC

AOI test,Function test,Burn-in test

Function key

POWER:ON/OFF; HIGH/LOW; ECO ; TIMER; TEMP +;TEMP -

Timer

1-8 hours

Apply to

Fan heater

Service

PCB design and PCBA

Remark: PCB layout can be customized according to customer requirements.

Our product can apply for various of certifications according to customer's requirements,such as: UL ,CE,ETL,TUV...



Main features

1)The heater's above the green fields 7 digital tube and function icon is highly recognizable.Color screen makes function status, easy to be identified.

2)When the heater inserted into the AC power source, a light red LED indicator light shine.

3) Consists of a high-grade (HI seven segment digital display screen to display) for full power (1500 w), when in low (LO consists of a seven segment digital display screen to display) Settings, warm wind opportunity to slightly more than 1/2 power (run a set of heating components, 850 w to 900 w), in both high and low fan motor to run at full speed.(motor speed is controlled by a thyristor. Heater USES a single speed motor).

4)ECO is characterized by a green LED to reflect, ECO is an energy saving mode.An environment closed heater probe in 100°F or 130 °F.

5)The time accumulated to eight hours.

6)Temperature setting and display range to 90°F- 39°F.



PCB Details

Item

Description

Capability

Material

Laminate materials

FR-1,FR-4 CEM-1 CEM-3,Alu...

Surface Finish

HASL,ENIG,immersion silver,immersion tin,OSP...

SMT

SMT component size

 0210, 0402,0603,0805,1206

Board cutting

Number of layers

1-16

Min. Thickness for inner layers

0.003”(0.07mm)

(Cu thickness are excluded)

Solder mask

Color

White,black,red,Green,yellow,blue...

Min solder mask clearance

0.003” (0.07mm)

Thickness

0.0005-0.0007”(0.012-0.017mm)

Silkscreen

Color

White,black,yellow,red,blue...

Min size

0.006” (0.15mm)

Board thickness

Standard

0.04-0.16”±10%(0.1-4mm±10%)

Min.

Single/Double layer: 0.008±0.004”

Copper weight

Outer Cu weight

0.5-4 oz

Inner Cu weight

0.5-3 oz

Drilling

Min size

0.0078” (0.2mm)

Drill deviation

±0.002” (0.05mm)

 hole tolerance

±0.002” (0.005mm)

Plating

Min hole size

0.0008” (0.02mm)

E-test

Flying Probe Tester

Yes

Controlled

Tolerance

±10%





Company Information



Fan heater PCBAFan heater PCBA



Sounds was founded 21 years ago, and it started producing its professional PCBA in 1995.  Sounds is expert in electrical PCBA design and manufacture. It also specialize in adapter and remote controller mass production. “Serve the public, focus on quality” is its motto. Sounds locates in Zhuhai city, Guangdong province. As it known to all, Zhuhai is convenient for export the electrics product. Its valued customer so far----Lasko, Jarden, Honeywell, Kaz and so on.



Production Process



Fan heater PCBAFan heater PCBA



Sounds has massive force in product design and development. The Engineering Dept has about 20 engineers. For Production Dept, it has 450 workers. Besides, there are 24 production lines for PCBA assembly. What’s more, its perfect equipment of auto-insert machines and surface mounting technology machines process quickly day and night. In the meantime, Sounds has continually improved its factory quality systems and passed ISO9001 and got the certificates of UL, ETL, CE and TUV. For IQC, all materials must up to ROHS standard, some of them must pass Compression Test, Salt Spray Test, High & Low Temperature Circle Test and Burn -in Test.



Quality Assurance



Fan heater PCBA

Hot Products



Fan heater PCBAFan heater PCBA



After 21 years of development, its sales volume ups to $25 million per year. Sounds does highly welcome OEM and ODM orders. The management motto of “Develop with Sincerity, Innovation and Progressive” encourage Sounds to keep moving. All in all, a good partner is also trustworthy, Sounds earn your trust and Sounds keep your trust.



Our Certificates



Fan heater PCBA

Packaging & Shipping



Fan heater PCBAFan heater PCBAFan heater PCBA

FAQ



Q1: What document should we provide if we need quotation and sample?

A: You should send us the Gerber file and BOM list. Your original sample is highly welcome. Please tell us the details about the project. If you need us make some test for the sample, you should tell us the test standards.



Q2: Can I have some samples from you ?

A: Of course, we always do new samples for our customers in order to confirm the product’s quality. The samples quality decide the product can go into mass product or not.



Q3: Can you offer us the best price?

A: Sure, we are the professional manufacturer and have 21 years’ experience, we have large enough supply chain, can offer you more favorable price than trading company.



Q4: How about the delivery time when I place an order?

A: For new samples ,we will  finish them within10-15days,For bulk orders, we usually need 15-20 days. The final delivery time depend on the design.



Q5: Which way would you like to send us the product?

A: By DHL, UPS, FedEX to ship samples. For bulk orders, we can ship by air or by sea.



Q6: Can I take a visit to your factory?

A: No problem, we are looking forward to your arrival and we will show you our factory’s ability. Please feel free to contact us, thanks.
